Quick Details

DESIGNATIONDIN:X 38 CrMoV 5-1AFNOR:Z 38 CDV 5UNI:X 37 CrMoV 5-1 KUAISI:H11 H11 ESRSTRENGTH:≈ 780 N mm²

Delivery

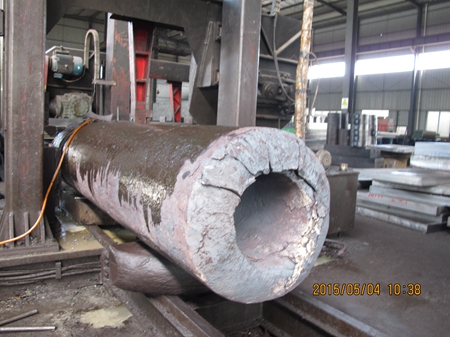

  • Delivery status: Forged 、
  • Surface: Blank 、
  • Standard: Select
  • Shape: Round, Flat, Square, Hexagon, Plate, Sheet, Other

Inventory Status

View Inventory

1.2343(H11/X38CrMoV5/Z38CDV5) ESR HOT-WORK STEEL Range of products
Product type Products Dimension Processes
Plates / Sheets Plates / Sheets 0.08-200mm(T)*W*L Forging, hot rolling and cold rolling
Steel Bar Round Bar, Flat Bar, Square Bar Φ8-1200mm*L Forging, hot rolling and cold rolling, Cast
Coil / Strip Steel Coil /Steel Strip 0.03-16.0x1200mm Cold-Rolled & Hot-Rolled
Pipes / Tubes Seamless Pipes/Tubes, Welded Pipes/Tubes OD:6-219mm x WT:0.5-20.0mm Hot extrusion, Cold Drawn, Welded

Product Details

DESIGNATION

GB DIN AFNOR UNI AISI Japan
4Cr5MoSiV1 X38CrMoV5-1 Z38CDV5 X37CrMoV5-1 KU H11 SKD6

STRENGTH:

≈ 780 N/mm²

THERMAL CONDUCTIVITY AT 200 °C:

27 W/m K


CHARACTER:

high-alloy hot-work steel with high toughness and heat resistance, hot cracks resistance and good thermal conductivity; for very high requirements available in grade *ESR (Electro-Slag Remelted)

APPLICATION:

molding plates and inserts for plastic injection mold tools; *ESR for applications for die casting (Al, Mg, Zn)


TREATMENT BY

highly suitable:
Polishing

very easily feasible (graining):
Etching
EDM:
in the hardened and tempered condition, treat again for stress relief about 20 °C below the last tempering temperature
Nitriding:
increases the wear resistance and prevents the bonding of casting material
Hard chroming:
in special cases


HEAT TREATMENT:

Annealing:
750 to 800 °C, about 4 to 5 hours slow controlled cooling of 10 to 20 °C per hour to about 600 °C; further cooling in air, max. 205 HB

Hardening:
1000 to 1040 °C
15 to 30 minutes keeping curing temperature
quenching in water/oil/air
obtainable hardness: 50−56 HRC

Nitriding:
Before nitriding stress-relief annealing is recommended at 550 °C. (Meusburger standard)
A treatment at 525 °C in ammonia gas results in a surface hardness of approx. 55 HRC

Tempering:
slow heating to tempering temperature immediately after hardening; minimum time in furnace: 1 hour per 20 mm part thickness; repeated tempering is recommended
