ASTM NICKEL 201 Enquiry | Print this page

Commercially pure (99.6%) wrought nickel essentially the same as Nickel 200 but with a lower carbon content to prevent embrittlement by intergranular carbon at temperatures over 600°F (315°C). Lower carbon content also reduces hardness, making Nickel 201 particularly suitable for cold-formed items.

STANDARD PRODUCT FORMS

Pipe, tube, sheet, strip, plate, round bar, flat bar, forging stock, hexagon and wire.

PHYSICAL CONSTANTS AND THERMAL PROPERTIES

Density, Ib/in3........................................................................0.321
g/cm3......................................................................... 8.89
Melting Range, °F ...................................................2615 – 2635
°C ...................................................1435 – 1446
Specific Heat, Btu/lb•°F ....................................................0.109
J/kg•°C........................................................... 456
Curie Temperature, °F ........................................................... 680
°C ........................................................... 360
Permeability ........................................................ Ferromagnetic
Coefficient of Expansion, 70 – 200°F, 10-6 in/in •°F........ 7.3
21 – 93°C, µm/m• °C............ 13.1
Thermal Conductivity, Btu • in/ft2•h•°F ........................... 550
W/m• °C.......................................... 79.3
Electrical Resistivity, ohm• circ mil/ft..................................51
µΩ•m..............................................0.085

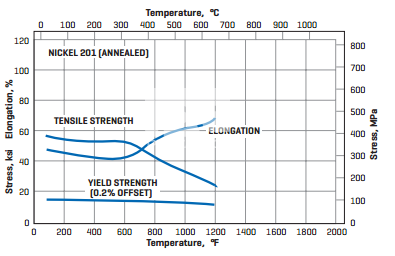

TYPICAL MECHANICAL PROPERTIES
(Annealed)
Tensile Strength, ksi.............................................................. 58.5
MPa............................................................ 403
Yield Strength (0.2% Offset), ksi...........................................15
MPa..................................... 103
Elongation, % ..............................................................................50
